Car speaker set
-
WG-40B
Car speaker set
Model: WG-40B (4 inches)
Impedance: 4 ohms
Rated power: 40 watts
Sensitivity: 91dB/mW ± 3dB
Frequency response: 80Hz-20KHz ± 3dB
Weight: 467g
Total height: 58mm ± 0.5
Installation height: 45mm ± 0.5
-
WG-50B
Car speaker set
Model: WG-50B (5.25 inches)
Impedance: 4 ohms
Rated power: 40 watts
Sensitivity: 91dB/mW ± 3dB
Frequency response: 60Hz-20KHz ± 3dB
Weight: 677g
Total height: 63mm ± 0.5
Installation height: 51mm ± 0.5
-
WG-60B
Car speaker set
Model: WG-60B (6.5 inches)
Impedance: 4 ohms
Rated power: 50 watts
Sensitivity: 91dB/mW ± 3dB
Frequency response: 60Hz-20KHz ± 3dB
Weight: 717g
Total height: 62mm ± 0.5
Installation height: 57mm ± 0.5
-

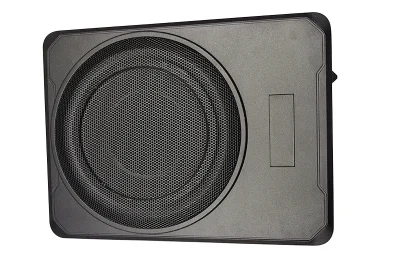

WG-101C 801C
RMS: 120W
Sensitivity:91db/m.w
Frequencyresponse:20Hz-250Hz
Bass Up:0-12db
Impedance:4Ω
Phase conversion:0° /180
Working voltage:10-15V
-
WG-A400
Car speaker set
Model: WG-A400 (4 inches)
Impedance: 4 ohms
Rated power: 30 watts
Sensitivity: 88dB/mW ± 3dB
Frequency response: 60Hz-20KHz ± 3dB
Weight: 656g
Total height: 54mm ± 0.5
Installation height: 48mm ± 0.5
-
WG-A500
Car speaker set
Model: WG-A500 (5.25 inches)
Impedance: 4 ohms
Rated power: 30 watts
Sensitivity: 88dB/mW ± 3dB
Frequency response: 60Hz-20KHz ± 3dB
Weight: 627g
Total height: 54mm ± 0.5
Installation height: 49mm ± 0.5
-
WG-A650
Car speaker set
Model: WG-A650 (6.5 inches)
Impedance: 4 ohms
Rated power: 30 watts
Sensitivity: 91dB/mW ± 3dB
Frequency response: 65Hz-22KHz ± 3dB
Weight: 692g
Total height: 54mm ± 0.5
Installation height: 49mm ± 0.5
